8-way Gigabit Ethernet switch with industrial grade, supporting 8 10/100/1000Base-T (X) PoE ports that comply with FCC, CE, and RoHS standards. ZT-IE6050-8GP has a working temperature of -40 ℃ to 75 ℃, and its strong robustness can adapt to various harsh environments. It can also be conveniently placed in a compact control box. The installation characteristics of the guide rail, wide temperature operation, and IP40 protection level shell and LED indicator light make it a plug and play industrial device using ZT-IE6050-8GP. It adopts high-quality and high-speed network IC and the most stable PoE chip, and the PoE port meets the 802.3af or 802.3at standards, providing reliable and convenient solutions for users' Ethernet device networking. It can be widely used in comprehensive energy, smart transportation, and smart factories, Industrial scenarios with Ethernet access such as smart cities and smart mines.
Ensure reliable data transmission and long working life
Supports full duplex or half duplex modes with automatic negotiation capability
The network interface supports fully automatic cross recognition
Built in storage and forwarding mechanism, supporting multiple protocols
Green and energy-saving, using low-power CPUs
Working power supply: DC 48V-57V provides reverse protection and 4A overcurrent protection
Ethernet port supports 10/100M adaptive and PoE functionality
Compatible with IEEE802.3at (30W) and IEEE802.3af (15.4w)
Lightning surge protection (power supply): 5000A (surge waveform of 8/20 μ s)
Meets industrial level operational standards, with an average time between failures of over 300000 hours
| Standards and Protocols | IEEE802.3-10Base-T IEEE802.3u-100Base-Tx IEEE802.3ab-1000Base-T(x) IEEE802.3x–Flow control IEEE 802.3af/at |
| interface | Electrical port：8x10/100/1000Base-T(X)，RJ45，Auto detect， Full/half duplex mode, MDI/MDI-X automatic detection |
| LED indicator light | Power indicator light：PWR |
| Exchange Properties | Transmission method: storage and forwarding Backplane bandwidth: 16G MAC address: 2K Application level: Level 2 Exchange latency:<3us Cache: 1Mbit Power consumption:<3W |
| PoE parameters | PoE standard: Meets IEEE802.3af/IEEE802.3at Single port maximum: 15.4 W (IEEE 802.3af) Single port maximum: 30 W (IEEE 802.3at) PoE compatibility: IEEE 802.3af/at adaptive PoE port output voltage: DC 48-57V PoE power supply core: 1/2+; 3/6- |
| power supply | Input voltage: DC12-52V (dual power redundancy backup) Supports dual power redundancy Support reverse protection Access terminal: Phoenix terminal |
| consumption | Empty: 1W@24VDC (Non PoE) the full load: 3W@24VDC (Non PoE) |
| work environment | Working temperature: -40 ℃~75 ℃ Storage temperature: -40 ℃~85 ℃ Relative humidity: 5%~95% (without condensation) |

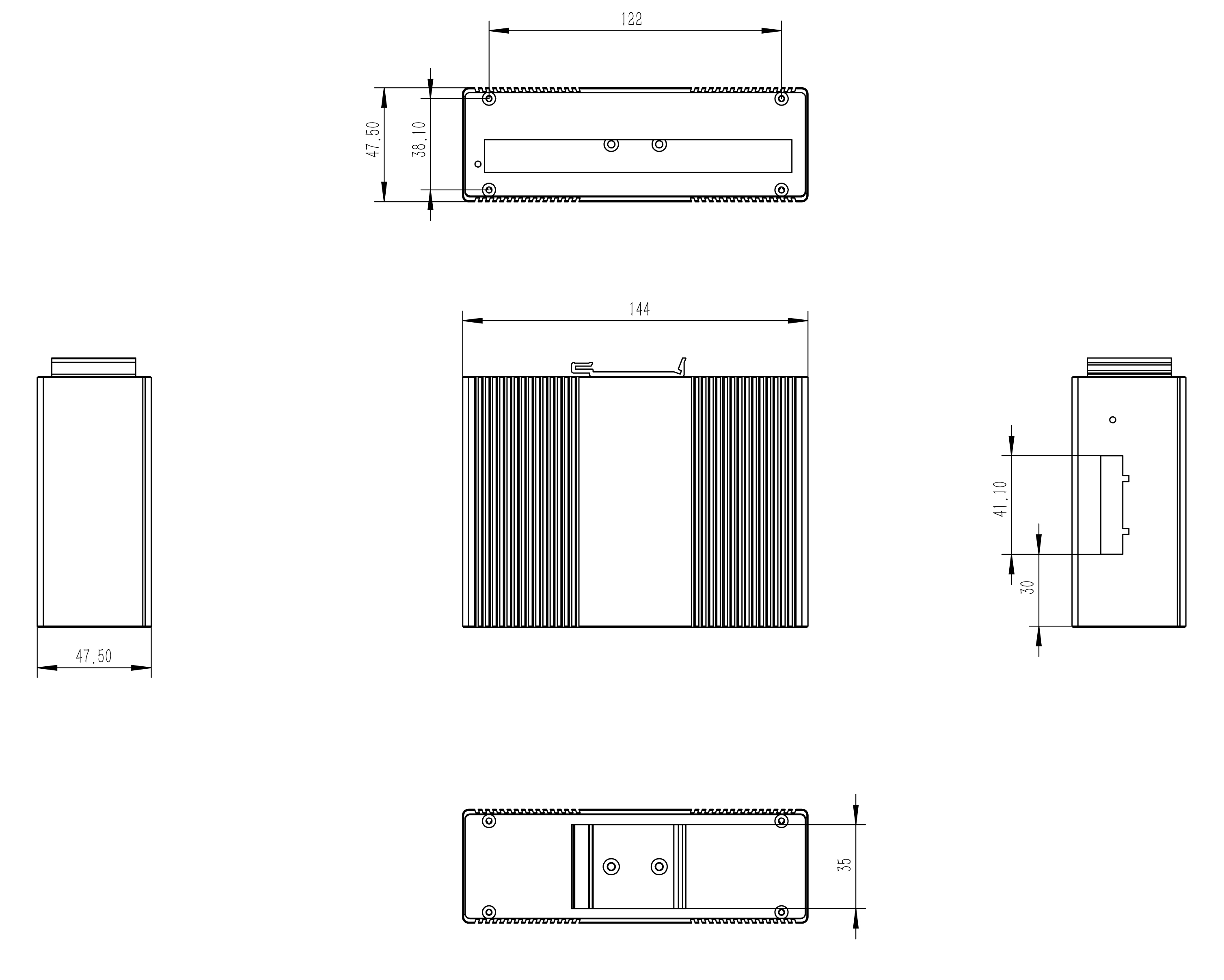

| mechanical structure | Housing: IP40 protection level, aluminum alloy housing Installation: DIN rail mounted Size: (length × wide × Height) 143x101x44mm Product weight: 0.64Kg |
| Industry standards | IEC 61000-4-2 (ESD, Electrostatic Discharge Immunity), Level 4 Air discharge: ± 15kV Contact discharge: ± 8kV IEC 61000-4-5 (Surge, Surge Immunity), Level 4 Power supply: common mode ± 4kV, differential mode ± 2kV Ethernet interface: ± 4kV Impact: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
| authentication | CE、FCC、RoHS、ISO9001、Detected by the Ministry of Public Security |
| warranty | 5 Years |
