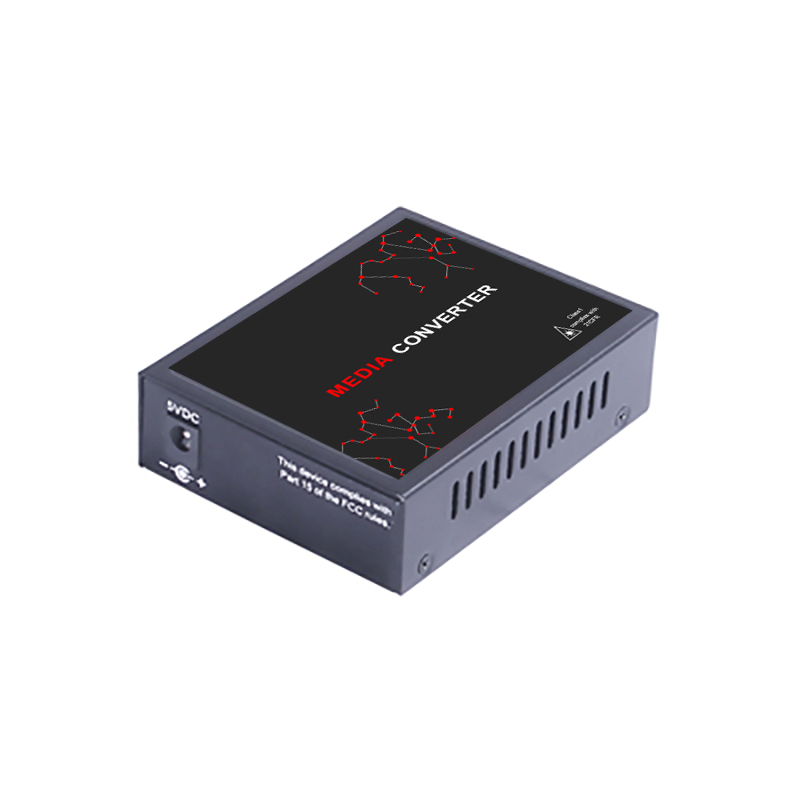

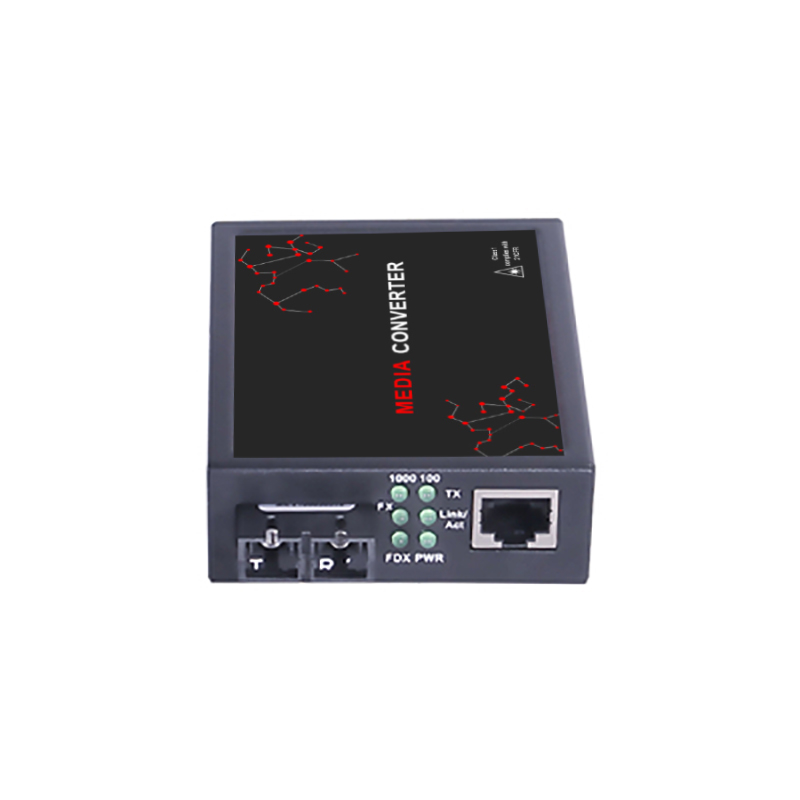

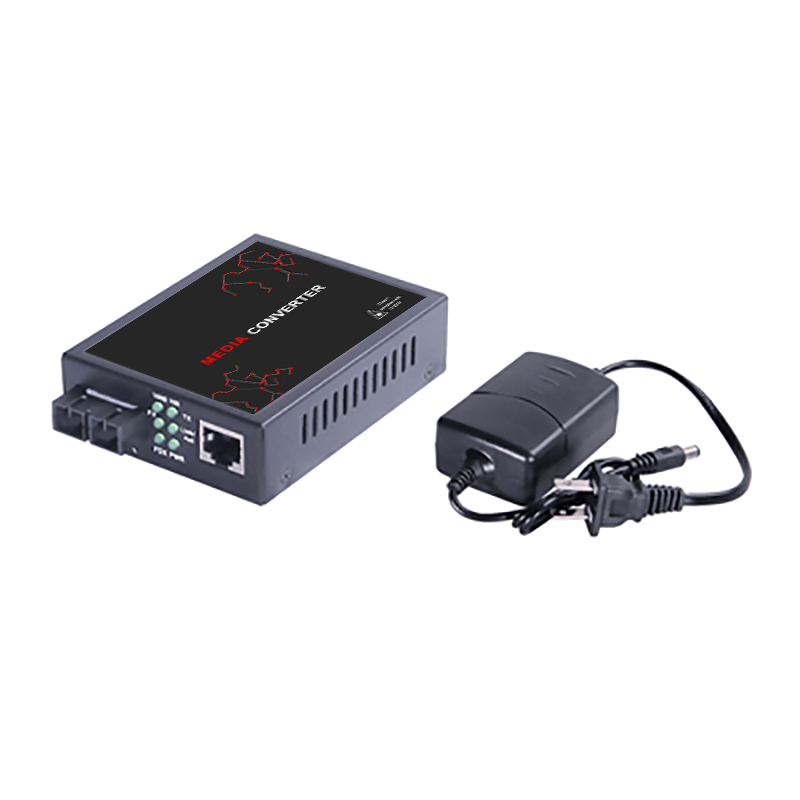

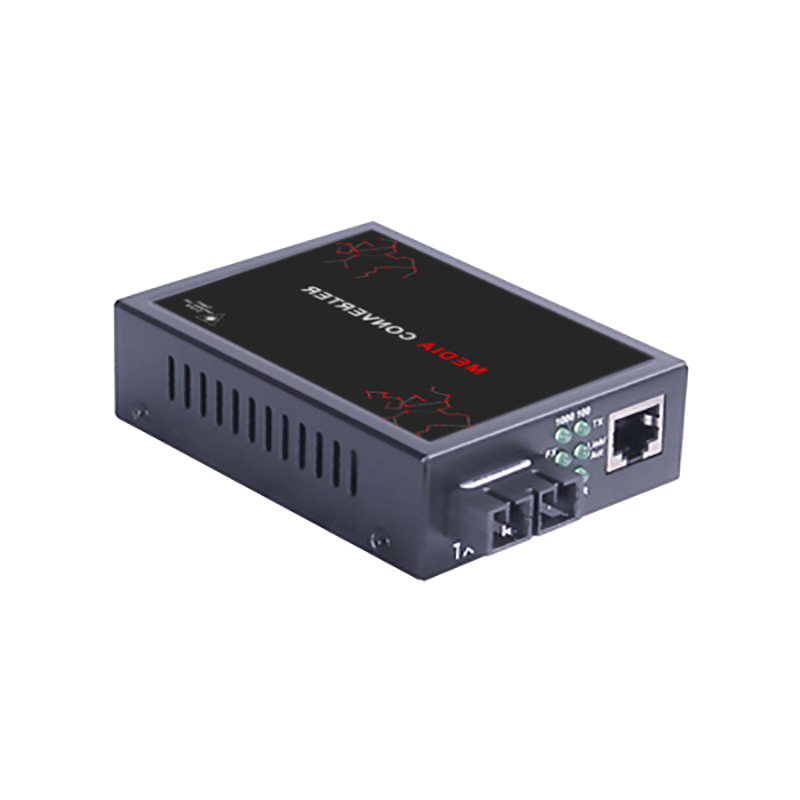

ZT-IE6000S-1GT1GS-WA provides cost-effective conversion from 1x10/100/1000Base TX to 1x1000Base FX interfaces to overcome the 100 meter distance limitation of copper cables in traditional networks. It allows for the installation of fiber optic cables in any location with an Ethernet network topology by directly connecting to existing devices. Its compact design allows for quick and easy deployment in narrow desktop locations to save space
Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3 x
1x10/100/1000BaseTX
1x1000Base FX
Automatic negotiation of half duplex/full duplex transmission modes
5V DC universal power supply
Transmission distance 20/40/60/80/120KM optional
Working environment temperature: 0-50 ° C
| rate | 10/100/1000Mbps |
| Device Type | Non network management |
| Shape Factor | Independent operation |
| Copper interface | 1x10/100/1000Base-TX |
| optical interface | 1x1000Base-FX |
| wavelength | TX1310nm |
| medium | SMF |
| distance | 20/40/60/80/120KM optional |
| connector | Duplex SC |
| LED indicator light | PWR； |
| FL/A | |
| FDX， | |
| TL/A | |
| 1000， | |
| FX | |
| Standards and Protocols | IEEE802.3i - 10Base-T； |
| IEEE802.3u - 100Base-TX/FX； | |
| IEEE802.3x - Flow Control; | |
| IEEE802.3z - 1000Base-X； | |
| IEEE802.3ab - 1000Base-T； | |
| Process type | Store and forward |
| flow control | Half duplex back pressure and IEEE 802.3x full duplex flow control |
| power input | DC 5V |
| consumption | <3W |
| delay | <20μs |
| buffer space | 128K |
| MAC address table | 8K |
| size | external: 94mm x 70mm x 26mm |
| internal: 140mm x 110mm x 30mm | |
| install | Standalone or rack mounted |
| work environment | Working temperature: -10~55 ° C |
| Storage temperature: -40~85 ° C | |
| Relative humidity: 5% to 95% non condensing | |
| authentication | CE, FCC, RoHS, ISO9001, Ministry of Public Security Inspection Report |
