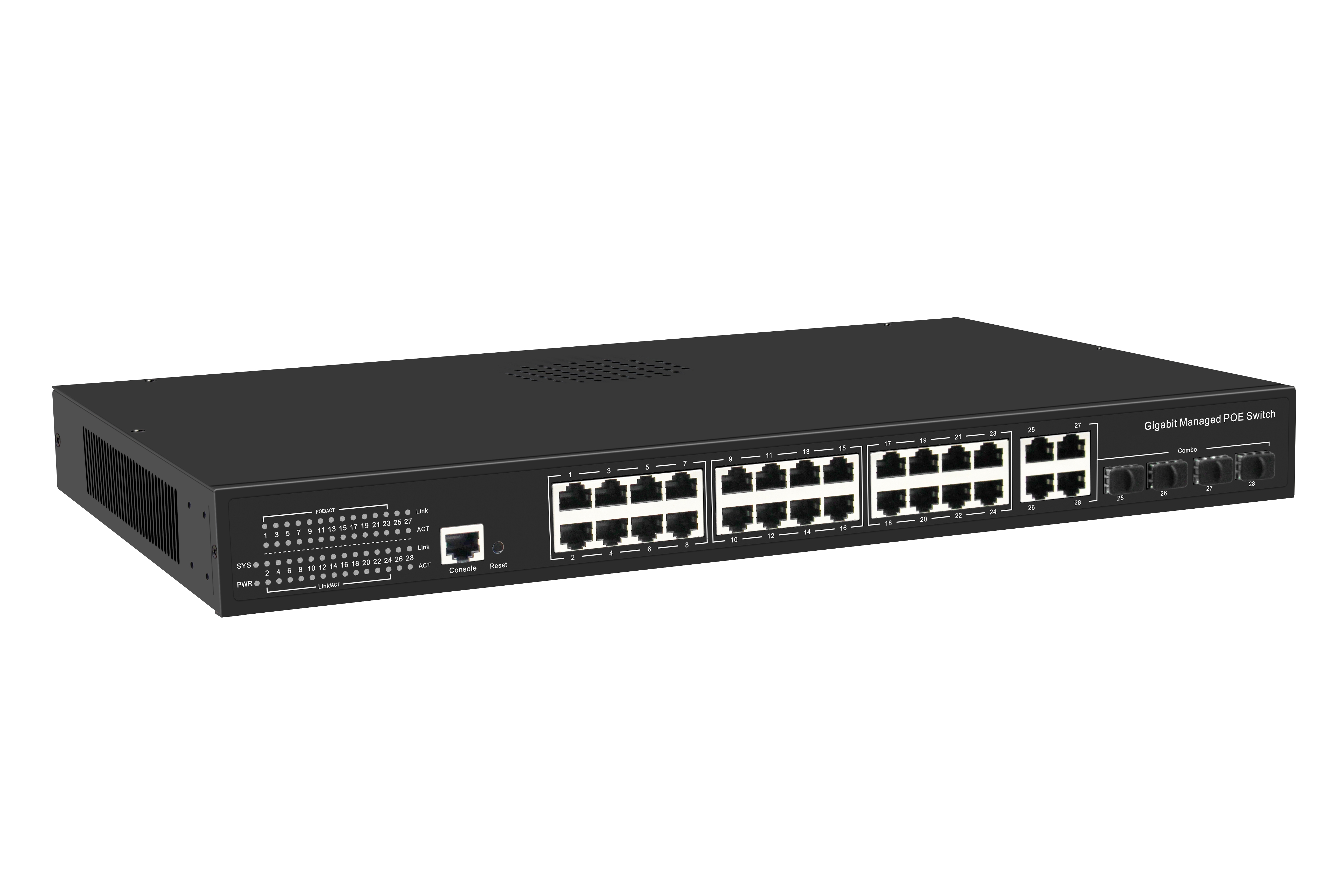

24 Gigabit PoE network ports+8 Gigabit optoelectronic multiplexing SFP ports+4 Gigabit SFP optical ports+1 Console port
Complies with the IEEE802.3af/at international standard, with a total power of 400W and a maximum single port power of 30W
Storage and forwarding switching mechanism, with a total switching capacity of up to 336Gbps and a packet forwarding rate of 96Mpps
Three layer network management, supporting business functions such as routing/DHCP/VLAN/MAC address/ACL/QoS
Supports ring network function, high-speed detection and self-healing function, with ring network self-healing time ≤ 12ms
Support security control strategies such as 802.1X authentication, ARP intrusion detection, IP source protection, DoS protection, etc
Support network protection functions such as STP/RSTP/MSTP spanning tree protocol, dynamic/static link aggregation, etc
Support web, TELNET, CLI, SSH, SNMP network maintenance and management methods
The 32-bit gigabit managed PoE switch is a self-developed green and energy-saving PoE switch that uses high-quality and high-speed network ICs and the most stable PoE chip. The PoE port meets the 802.3af or 802.3at standards. This series of PoE switches can provide seamless connection for 10/100/1000M Ethernet, and the PoE power supply port can automatically detect and power powered devices that meet the IEEE802.3af or IEEE802.3at standards, Non PoE devices are not powered by intelligent detection and only transmit data.
PoE technology (Power over Ethernet) is the power over Ethernet technology. It means that while transmitting data signals for some IP based terminals (such as IP phones, wireless access APs, network cameras, etc.), it also provides DC power supply technology for this device. These devices receiving DC power supply are called power receiving devices.
With simple and convenient installation and maintenance methods and rich business features, it helps users create a safe and reliable high-performance network. Mainly positioned at the core or convergence layer of user networks such as industrial parks, buildings, factories and mines, government agencies, and residential broadband; It can be widely used in Ethernet access scenarios such as small and medium-sized enterprises, internet cafes, hotels, schools, etc.
I/O Interface | |
Power | Input: AC 100-240V, 50/60Hz |
Ethernet | 24* 10/100/1000Mbps PoE Port 4* 1000M RJ45 Port(Combo) 4*1000M SFP Port (Combo) 1 * RJ45 Console Port |
Performance | |
Switching Capacity | 56Gbps |
Throughput | 41.66Mpps |
Packet Buffer | 4Mb |
Flash Memory | 16MB |
DDR SDRAM | 128MB |
MAC Address | 8K |
Jumbo Frame | 9.6Kbytes |
Transfer Mode | Store and forward |
MTBF | 100000 hour |
Standard | |
Network protocol | IEEE 802.3：Ethernet MAC Protocol IEEE 802.3i：10BASE-T Ethernet IEEE 802.3u：100BASE-TX Fast Ethernet IEEE 802.3ab：1000BASE-T Gigabit Ethernet IEEE 802.3z：1000BASE-X Gigabit Ethernet (optical fiber) IEEE 802.3az：Energy Efficient Ethernet IEEE 802.3ad：Standard method for performing link aggregation IEEE 802.3x：Flow control IEEE 802.1ab： LLDP/LLDP-MED (Link Layer Discovery Protocol) IEEE 802.1p：LAN Layer QoS/CoS Protocol Traffic Prioritization(Multicast filtering function) IEEE 802.1q：VLAN Bridge Operation IEEE 802.1x：Client/Server Access Control and Authentication Protocol IEEE 802.1d：STP IEEE 802.1s：MSTP IEEE 802.1w：RSTP |
PoE Protocol
| IEEE802.3af （15.4W） IEEE802.3at （30W） |
Industry Standard | EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD)、EN61000-4-4 (EFT)、EN61000-4-5 (Surge) Shock: IEC 60068-2-27 Free Fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
Network Medium
| 10Base-T : Cat3、4、5 or above UTP(≤100m) 100Base-TX : Cat5 or above UTP(≤100m) 1000Base-TX : Cat5 or above UTP(≤100m) Multi-mode Fiber: 50/125、62.5/125、100/140um Single-mode Fiber: 8/125、8.7/125、9/125、10/125um |
Protection | |
Security Certificae | CE、FCC、RoHS |
Environment | |
Working Environment | Working Temperature：-20~50°C Storage Temperature：-40~85°C Working Humidity ：10%~90%，non-condensing Storage Temperature：5%~90%，non-condensing Working Height：Maximum10,000 feet Storage heigh：Maximum 10,000 feet |
Indication | |
LED Indicators | PWR（power supply）,SYS（System）,1-24 PoE&ACT (PoE),1-24 Link&ACT（Link&Act），25-28 Link(Link),25-28 Act (Act) |
DIP Switch | Reset |
Mechanical | |
Structure Size | Product Dimension (L*W*H): 440* 280*44mm Package Dimension (L*W*H): 500*350*90mm N.W：3.9kg G.W：4.6kg |
Packing Info | Carton MEAS：600*495*435mm Packing Qty：5 units Packing Weight：24KG |
Power Voltage | Input Voltage ：AC 100-240 V Power supply：52V7.69A |
Package List | Switch 1 pcs, Power cord 1 pcs, User manual 1 pc, Warranty card 1 pc, Brackets 1 pair(Selectable) |
Ordering Info | |
ZT-IE6250S-24GPC4GT4GS-400 | 32 Port Gigabit Managed PoE Switch |
Port Management | Enable/Disable Port |
Speed、Duplex、MTU Setting | |
Flow-control | |
Port Information Check | |
Port Mirroring | Supports both side-way port mirroring |
Port Speed Limit | Supports port-based input / output bandwidth management |
Port Isolation | Support the downlink port isolation, and can communicate with the uplink port |
Storm Suppression | Supports unknown unicast, multicast, unknown multicast, broadcast type storm suppression Storm suppression based on bandwidth regulation and storm filtering |
Link Aggregation | Support static manual aggregation Support LACP dynamic aggregation |
VLAN | Access |
Trunk | |
Hybrid | |
Support port, protocol, MAC-based VLAN partitioning | |
Support GVRP dynamic VLAN registration | |
Voice VLAN | |
MAC | Support static addition, deletion |
MAC address learning limit | |
Support dynamic aging time setting | |
Spanning tree | Support STP spanning tree protocol Supports RSTP Rapid Spanning Tree Protocol Supports MSTP Rapid Spanning Tree Protocol |
Multicast | Support static addition, deletion IGMP-snooping |
Support MLD-Snooping | |
Support v1/2/3 dynamic multicast monitor | |
DDM | Support SFP/SFP+DDM |
Extended Function | |
ACL | Based on source MAC, destination MAC, protocol type, source IP, destination IP, L4 port |
Based on 802.1p (COS) classification | |
Based on DSCP classification | |
Classification based on source IP, destination IP, and port number | |
Support SP, WRR scheduling strategy | |
Support flow rate limit CAR | |
LLDP | Support LLDP link discovery protocol |
User settings | Add/delete users |
Log | User login, operation, status, events |
Anti-attack | DOS defense |
Support CPU protection and limits the rate of sending cpu packets | |
ARP binding (IP, MAC, PORT binding) | |
Certification | Support 802.1x port authentication |
Support AAA certification | |
Network diagnosis | Support ping、telnet、trace |
System Management | Device reset, configuration save/restore, upgrade management, time setting, etc. |
Management function | |
CLI | Support serial port command line management |
SSH | Support SSHv1/2 remote management |
TELNET | Support telnet remote management |
WEB | Support Layer 2 settings, Layer 2 and Layer 3 monitor |
